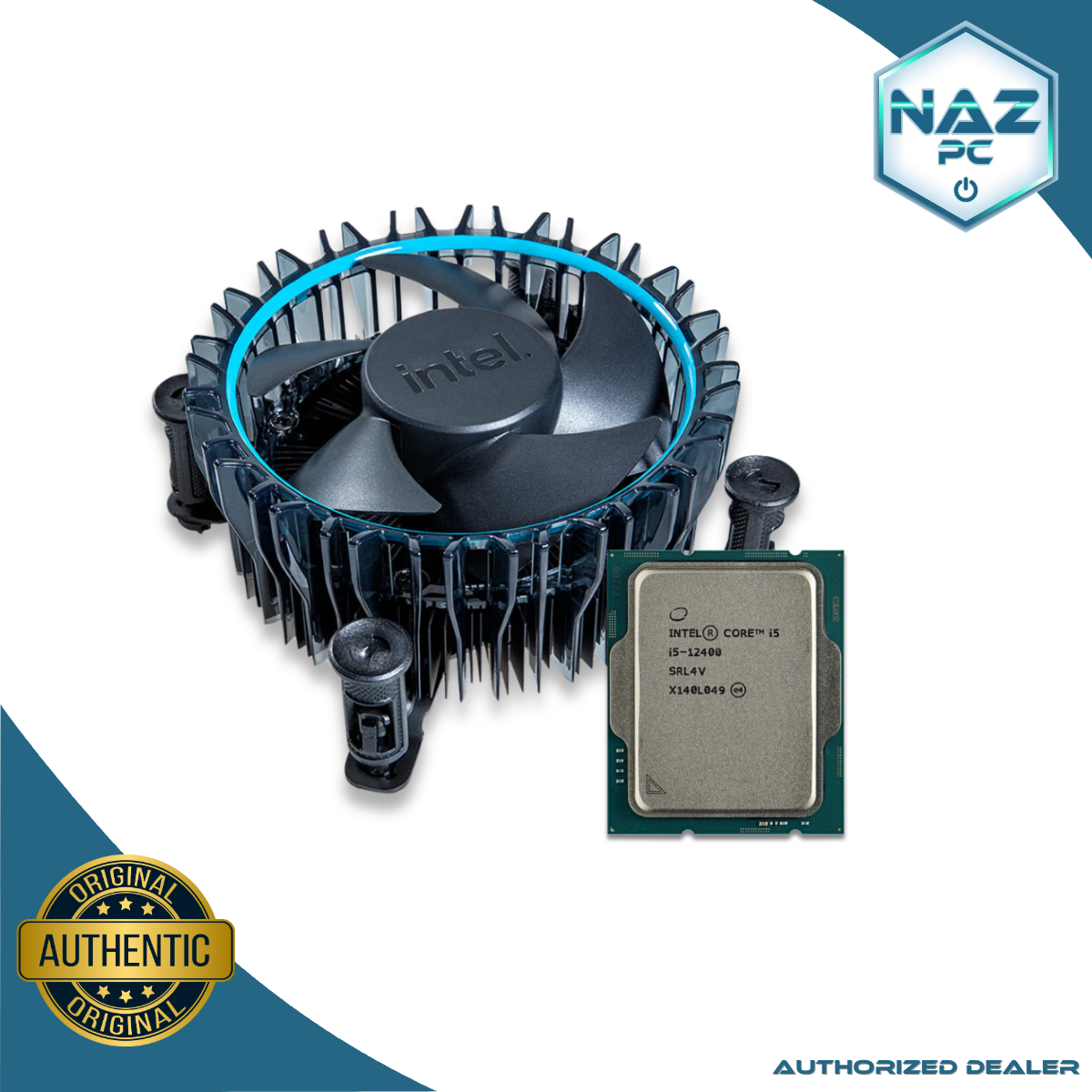

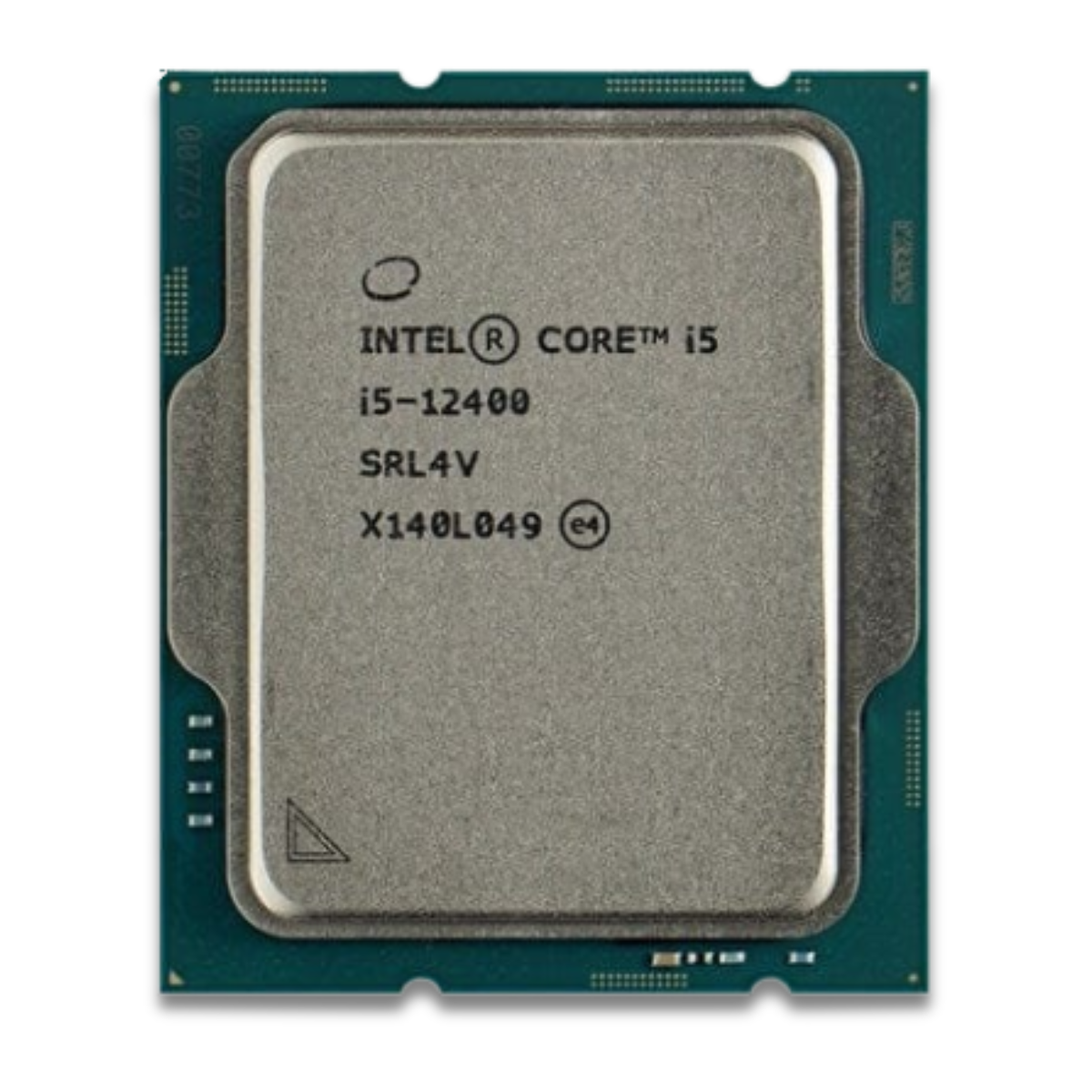

Intel Core i5 12400 Tray Type (SRL5Y)

Description

Intel Core i5 12400 Tray Type

Item Description:

* Brand: Intel

* Model: Core I5-12400

* Total Cores: 6

* # of Performance-cores: 6

* # of Efficient-cores: 0

* Total Threads: 12

* Max Turbo Frequency: 4.40 GHz

* Performance-core Max Turbo Frequency: 4.40 GHz

* Performance-core Base Frequency: 2.50 GHz

* Cache: 18 MB Intel® Smart Cache

* Total L2 Cache: 7.5 MB

* Processor Base Power: 65 W

* Maximum Turbo Power: 117 W

* Memory Specifications

* Max Memory Size (dependent on memory type): 128 GB

* Memory Types: Up to DDR5 4800 MT/s | Up to DDR4 3200 MT/s

* Max # of Memory Channels: 2

* Max Memory Bandwidth: 76.8 GB/s

* Processor Graphics : Intel® UHD Graphics 730

* Graphics Base Frequency: 300 MHz

* Graphics Max Dynamic Frequency: 1.45 GHz

* Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

* Execution Units: 24

* Max Resolution (HDMI): 4096 x 2160 @ 60Hz

* Max Resolution (DP): 7680 x 4320 @ 60Hz

* Max Resolution (eDP – Integrated Flat Panel): 5120 x 3200 @ 120Hz

* DirectX* Support: 12

* OpenGL* Support: 5

* Multi-Format Codec Engines: 1

* Intel® Quick Sync Video: Yes

* Intel® Clear Video HD Technology: Yes

* # of Displays Supported: 4

* Device ID: 0x4692 / 0x4682

* OpenCL* Support: 2.1

* Expansion Options

* Direct Media Interface (DMI) Revision: 4.0

* Max # of DMI Lanes: 8

* Scalability: 1S Only

* PCI Express Revision: 5.0 and 4.0

* PCI Express Configurations: Up to 1×16+4, 2×8+4

* Max # of PCI Express Lanes: 20

* Package Specifications

* Sockets Supported: FCLGA1700

* Max CPU Configuration: 1

* Thermal Solution Specification: PCG 2020C

* TJUNCTION: 100°C

* Package Size: 45.0 mm x 37.5 mm

* Intel® Gaussian & Neural Accelerator: 3.0

* Intel® Thread Director: No

* Intel® Deep Learning Boost (Intel® DL Boost): Yes

* Intel® Optane™ Memory Supported: Yes

* Intel® Speed Shift Technology: Yes

* Intel® Turbo Boost Max Technology 3.0: No

* Intel® Turbo Boost Technology: 2.0

* Intel® Hyper-Threading Technology: Yes

* Intel® Virtualization Technology (VT-x): Yes

* Intel® Virtualization Technology for Directed I/O (VT-d): Yes

* Intel® VT-x with Extended Page Tables (EPT): Yes

* Intel® 64: Yes

* Instruction Set: 64-bit

* Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

* Idle States: Yes

* Enhanced Intel SpeedStep® Technology: Yes

* Thermal Monitoring Technologies: Yes
